Buttweld fittings achieve a lot of admiration of deference by our customers attributable to its high strength, dimensional correctness, high tension power, corrosion resistant and consistency. These items are utilized in different business, mechanical and car enterprises. We produce these fittings utilizing high grade of raw material by implementing most ultra modern technology. These items are customers can profit from us at different sizes, shapes and design as per the requirements. As an one of the prominent industry Dhairya Alloys offers variations of Duplex S31803 Buttweld Pipe Fittings, Super Duplex Stainless Steel Buttweld Fittings, Stainless Steel 321 Pipe Fittings, Stainless Steel 316L Buttweld Fittings, Stainless Steel 304L Buttweld Fittings Manufacturers in India
Buttweld Fittings Specification
| Specification | Details |
|---|---|
| Size | 1/2" - 24" Seamless & 1/2" - 60" Welded |
| Thickness | Sch.5 to Sch. XXS |
| Dimension Standard | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Types | Elbow, Tee, Cross Tee, Reducer, Cap, Stub-End etc. |
| Specialised Grade |
Carbon Steel Butt Weld Fittings: WPB, WPHY42,
WPHY46, WPHY52, WPHY60, WPHY65, WPHY70 Alloy Steel Butt Weld Fittings: WP-P1, P5, P9, P11, P22, P91 Low Temperature Carbon Steel Butt Weld Fittings: WPL3, WPL6 |

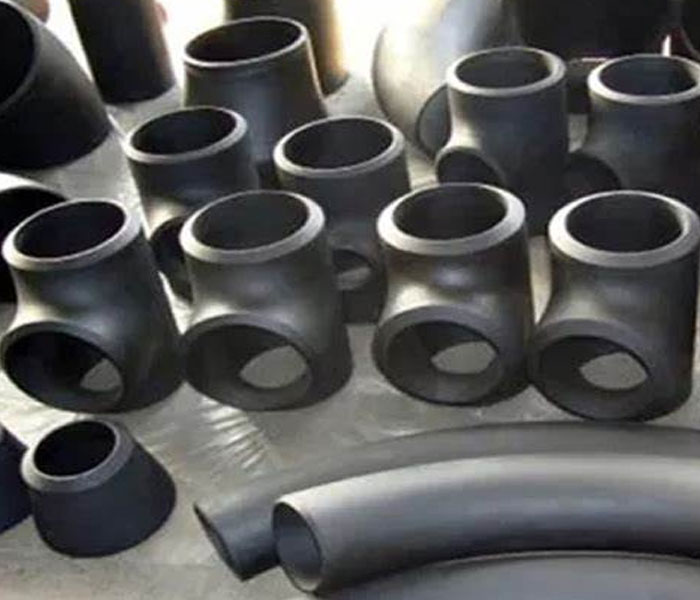

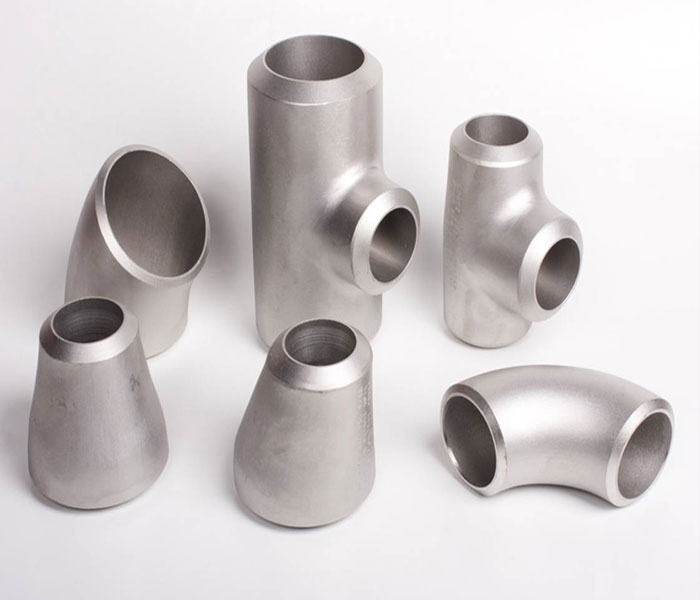

Alloy Steel Buttweld Fittings
Stainless steel alloy Buttweld Fittings are created with diverse chemical compositions that provide the fittings with high strength and hardness. Carbon, nickel, aluminium, manganese, titanium, and irons are all present in these compounds. Size, standards, grade, kinds, thickness, forms, end, surface, finish, length, width, applications, tolerance, conditions, and pressure are all included in the design of these alloy fittings. These alloy fittings have diverse qualities for hardness, corrosion resistance, and durability at annealed temperatures. These qualities include the alloy fittings’ thermal conductivity, electrical resistivity, modulus of expansion, density, melting temperature, elongation, electrical conductivity, and proof tress. These fittings are available in a variety of styles, including seamless, welded, fabricated, and ERW.
Alloy Steel Bars & Rods Standard
| Specification | Details |
|---|---|
| Specification | ASTM A234 / ASME SA234 |
| Standard | EN, ISO, DIN, JIS, NPT |
| Dimension Standard | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size | 1/8” NB to 48” NB (Seamless & 100% X-Ray Welded, Fabricated) |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Type Of Dimension | BS1640, EN 10253-4, DIN 2605, JIS B2312, ANSI B16.9, MSS SP-75, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2313 |
| Type | Seamless / Welded / Fabricated |
| Pressure-Temperature Class | 150LB, 300LB, 600LB, 1500LB, 2500LB |
| Schedule | Schedule 5 to Schedule XXS |

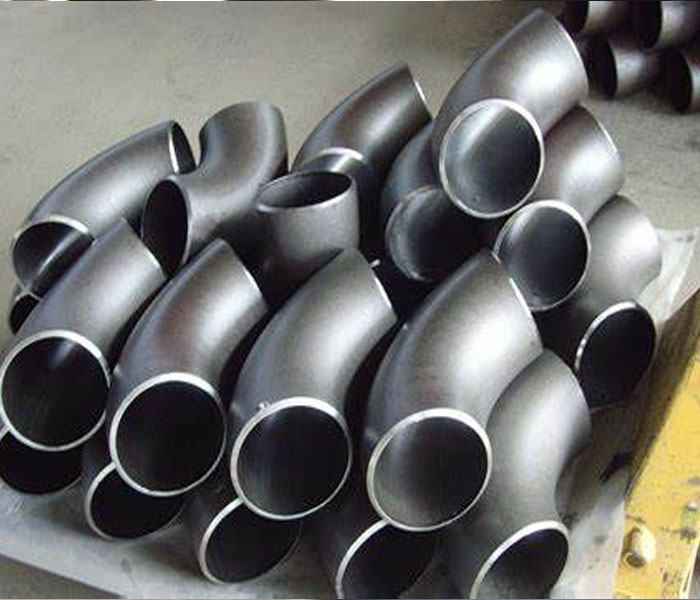

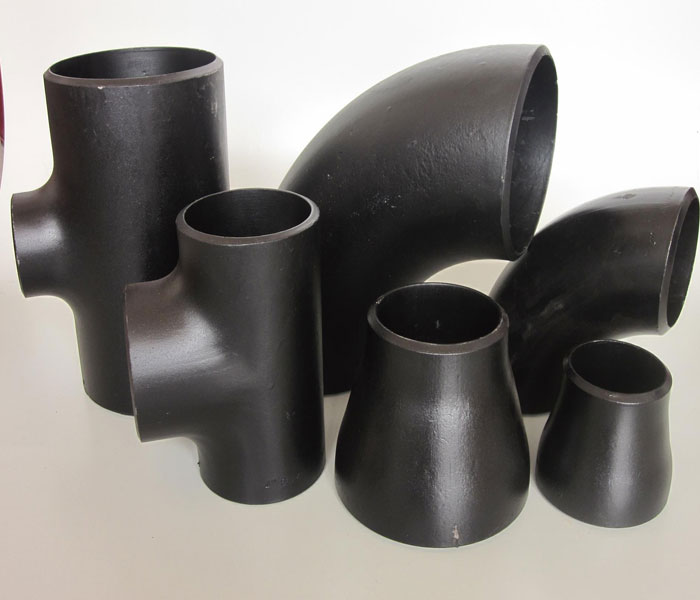

Carbon steel Buttweld Fittings
There are Carbon steel weld fittings that used in the aerospace, marine, petrochemical and sea water processing industries. The strength, hardness and toughness of the Carbon steel sch 40 pipe fittings make them applicable for high wear and tear applications. The A234 specification is for wrought carbon steels and alloy CS fitting for moderate and high temperature services. The ASTM A234 carbon steel buttweld pipe fittings are some of the high temperature application fitting. These are used in heat exchangers, condensers and in boiler pipelines as well. Please feel free to contact us for more information on the Carbon Steel Schedule 80 Pipe Fittings, other schedules and classes and the various prices as well
| Specification | Details |
|---|---|
| Specifications | ASTM A234 / ASME SA234 |
| Bending Radius | Radius=1D, 1.5D, 2D, 3D, 5D, 6D, 8D, 10D |
| Size Range | Seamless Butt-Weld Fitting: From 1/2″ - 10″ Welded Butt-Weld Fitting: From 1/2″ - 48″ |
| Dimension | ASME/ANSI B16.9 | ASME B16.28 | MSS-SP-43 | BS1560 | BS4504 | BS10 |
| Size Ranges | ½” NB to 24″ NB in Schedule 10s, 40s, 80s, 160s, XXS |
| Types | Welded | Seamless | Fabricated |
| Process of Manufacturing | Push, Press, Cast, Forge |
| Thickness of Fitting | SCH10, SCH20, SCH30, STD SCH40, SCH80, SCH60, XS, SCH100, SCH120, SCH140, SCH160, XXS available with NACE MR 01-75 |

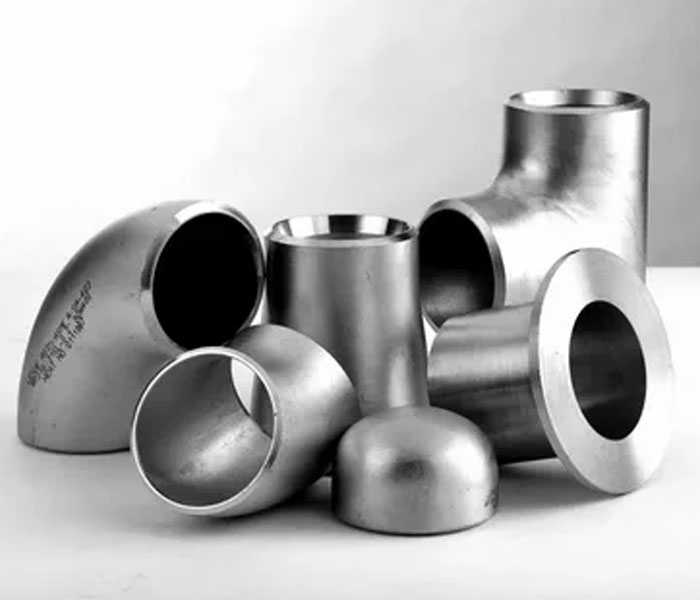

Stainless Steel Buttweld
| Specification | Details |
|---|---|
| Range | 15 NB up to 1200 NB in SCH 5S, 10S, 10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160 & XXS |
| Types | Long/short radius elbows, equal/unequal tees, concentric/eccentric reducers, caps, cross, short/long neck stub-ends |
| Available Grades | 303, 304, 304L, 316, 316L, 316Ti, 310, 310S, 321, 317L, 347, 347H, 904L, 17-4PH, 15-5PH, 410, 420 |

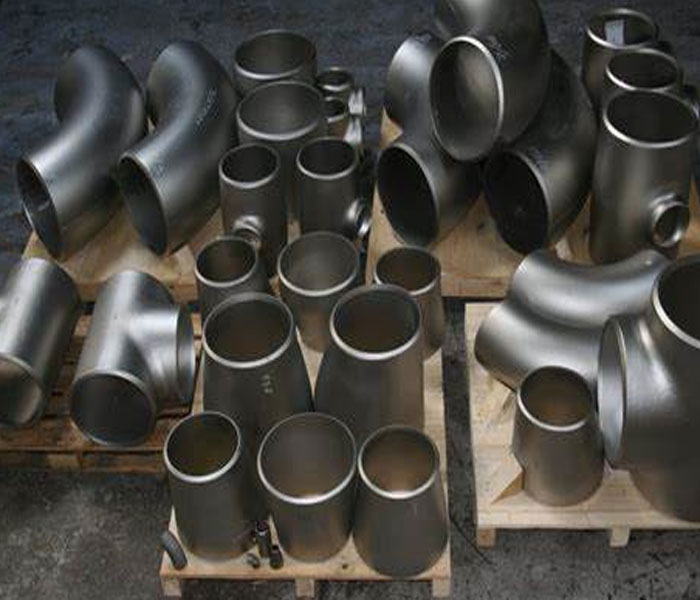

Nickel Alloy Buttweld
| Specification | Details |
|---|---|
| Range | 15 NB up to 1200 NB in SCH 5S, 10S, 10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160 & XXS |
| Types | Long/short radius elbows, equal/unequal tees, concentric/eccentric reducers, caps, cross, short/long neck stub-ends |
| Available Grades | INCONEL 600, 601, 625, 718, 800, 800H, 800HT, 825, 925 SMO 254, ALLOY 20 (20CB3), MONEL 400, 500K, RA 330 HASTELLOY C-276, HASTELLOY B2, B3, TITANIUM Gr 1 to 12 |

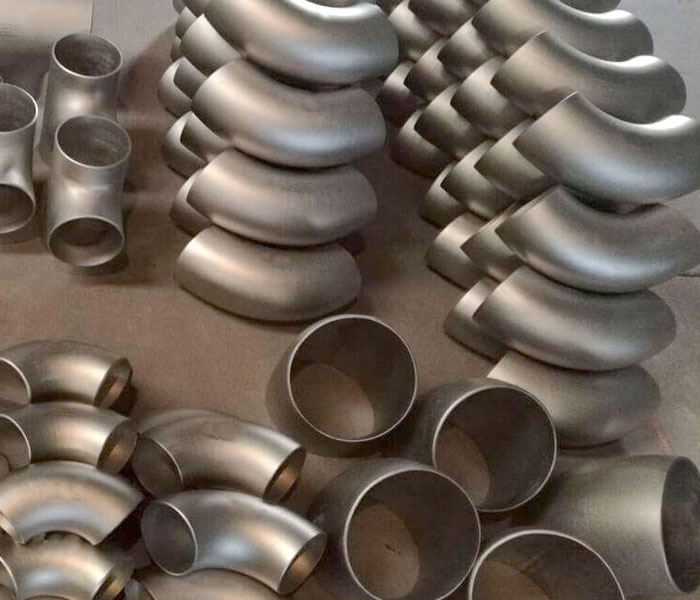

Duplex/ Super Duplex Buttweld
| Specification | Details |
|---|---|
| Range | 15 NB up to 1200 NB in SCH 5S, 10S, 10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160 & XXS |
| Types | Long/short radius elbows, equal/unequal tees, concentric/eccentric reducers, caps, cross, short/long neck stub-ends |
| Available Grades | UNS S31803 (F51), UNS S2205 (F60), UNS S32750 (F53), UNS S32760 (F55) |

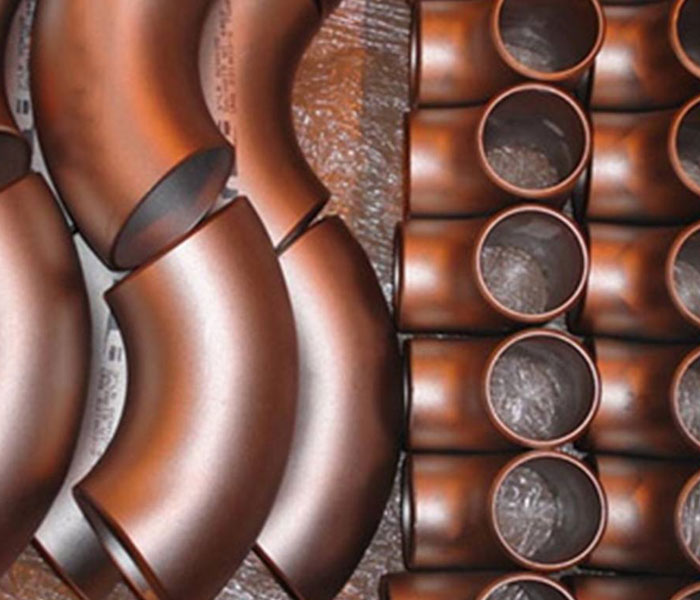

Copper Nickel Buttweld
| Specification | Details |
|---|---|
| Range | 15 NB up to 1200 NB in SCH 5S, 10S, 10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160 & XXS |
| Types | Long/short radius elbows, equal/unequal tees, concentric/eccentric reducers, caps, cross, short/long neck stub-ends |
| Available Grades | Copper Nickel 90/10, Copper Nickel 70/30 |

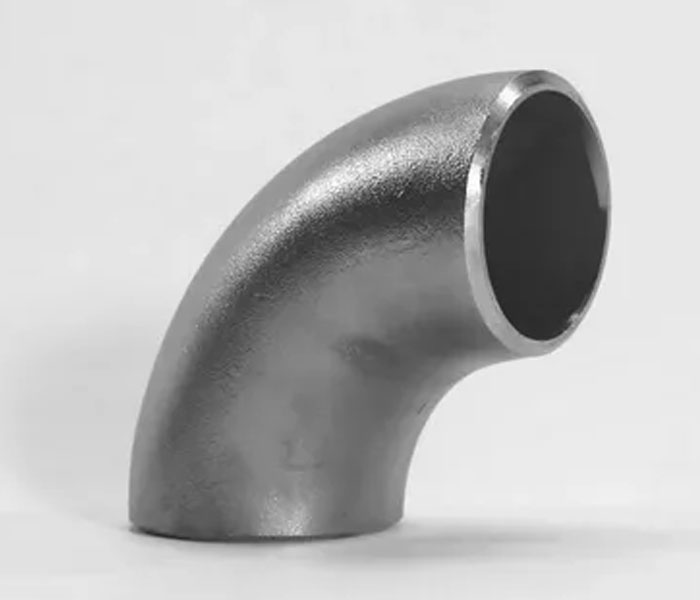

ELBOW
| Specification | Details |
|---|---|
| Form | Elbows in long & short radius in 45°, 90°, 180° |
| Grades Offered |
Stainless Steel: ASTM A403 WP304 / 304L / 304H / 316 / 316L / 317 / 317L / 321 / 310 / 347 / 904L Carbon Steel: ASTM A234 WPB / A420 WPL3 / A420 WPL6 / MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Alloy Steel: ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91 |
| Size | 1/8″ NB to 48″ NB (Seamless & Welded) |
| Wall Thickness | Sch. 5S to Sch. XXS |

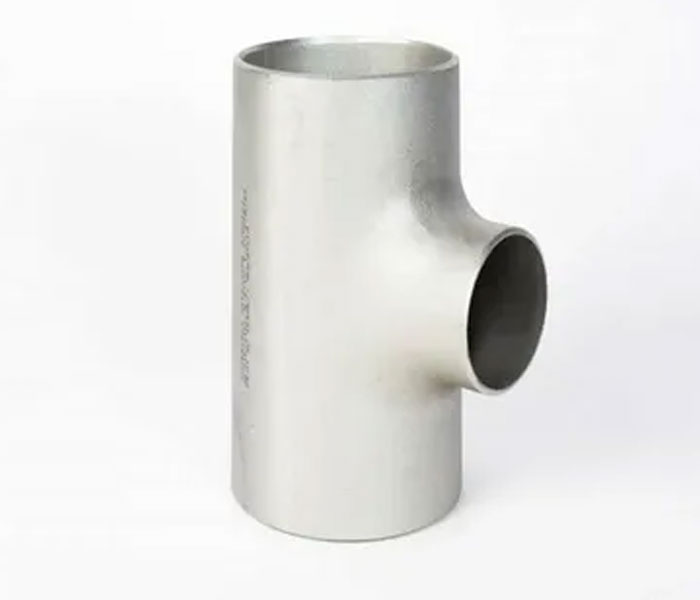

REDUCING TEE
| Specification | Details |
|---|---|
| Form | Elbows in long & short radius in 45°, 90°, 180° |
| Grades Offered |
Stainless Steel: ASTM A182, A240 Carbon Steel: ASTM A234 WPB / A420 WPL3 / A420 WPL6 / MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Alloy Steel: ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91 |
| Size | 1/8″ NB to 48″ NB (Seamless & Welded) |
| Wall Thickness | Sch. 5S to Sch. XXS |

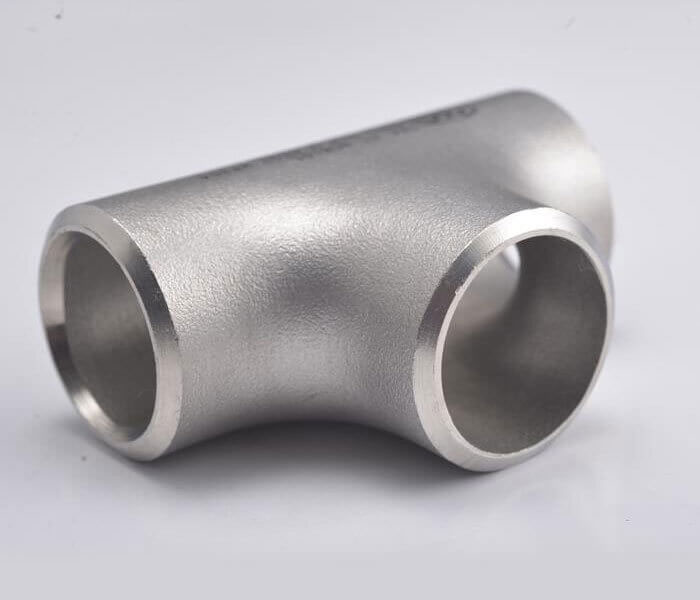

EQUAL TEE
Equal Tee is a T-shaped device which has three openings that act as an outlet for the pipe. All the three ends of the equal tee are of the same size. We can offer equal in different metals such as monel, nickle, inconel, hastalloy, copper, brass and titanium material. Custom made equal can be developed to befit the specific application requirement of the clients..

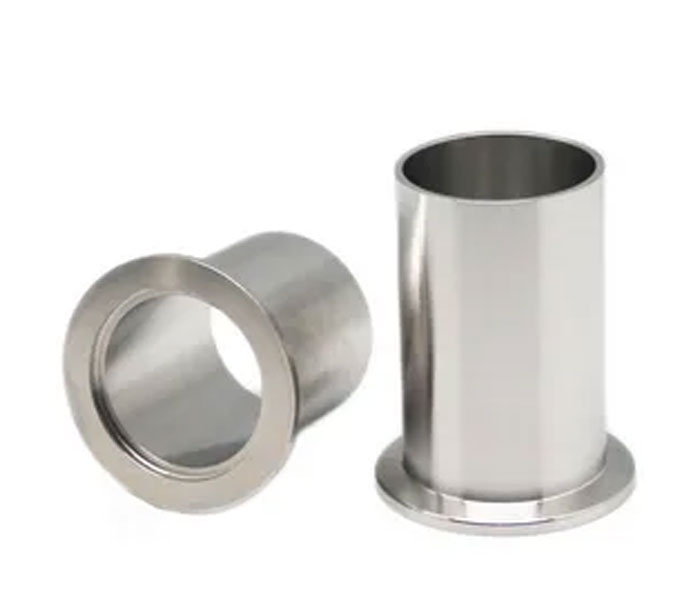

LONG & SHORT STUB END
| Specification | Details |
|---|---|
| Size | 1/8″ NB to 48″ NB |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH120, SCH140, SCH160, XXS |
| Type | Seamless / ERW / Welded / Fabricated |
| Form | Long stub end & Short stub end |

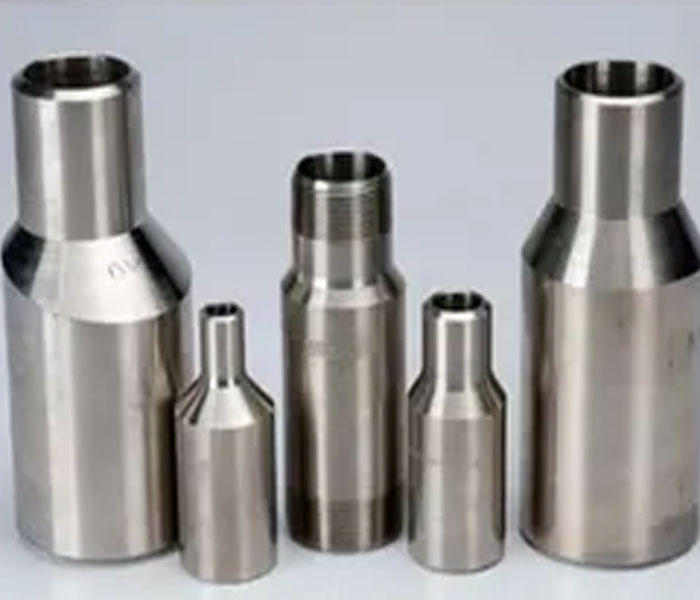

SWAGE NIPPLE & BARREL NIPPLE
We offer Swage Nipple and Barrel Nipple, specially designed to withstand high temperature and pressure. These can be used for permanent welded connection or detachable thread connection. Our range is available in varied specifications to suit the application based requirements of the clients.

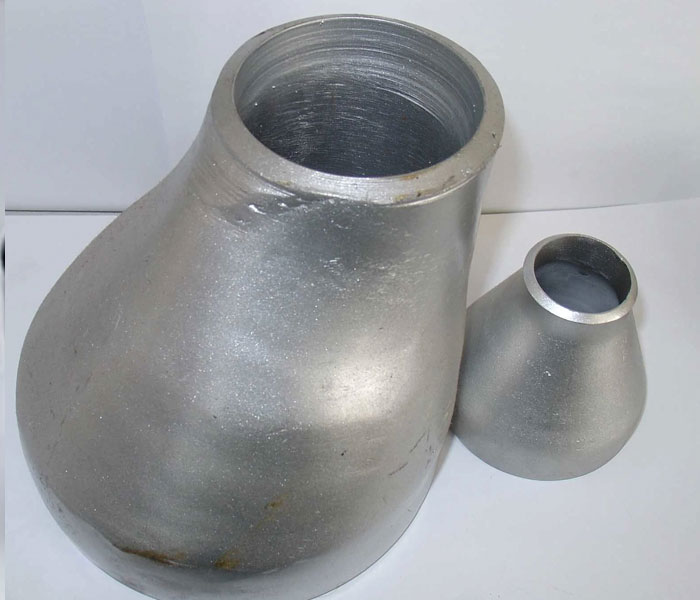

CONCENTRIC & ECCENTRIC REDUCERS
We are offering our clients with concentric / eccentric reducers that are used in petrochemical, power, nuclear and electronic industries. Known for their close tolerances, these stainless steel concentric and eccentric reducers are designed with precise configurations. These reducers are ideal for critical applications that involve high pressure, impulse, vibration and temperature.
